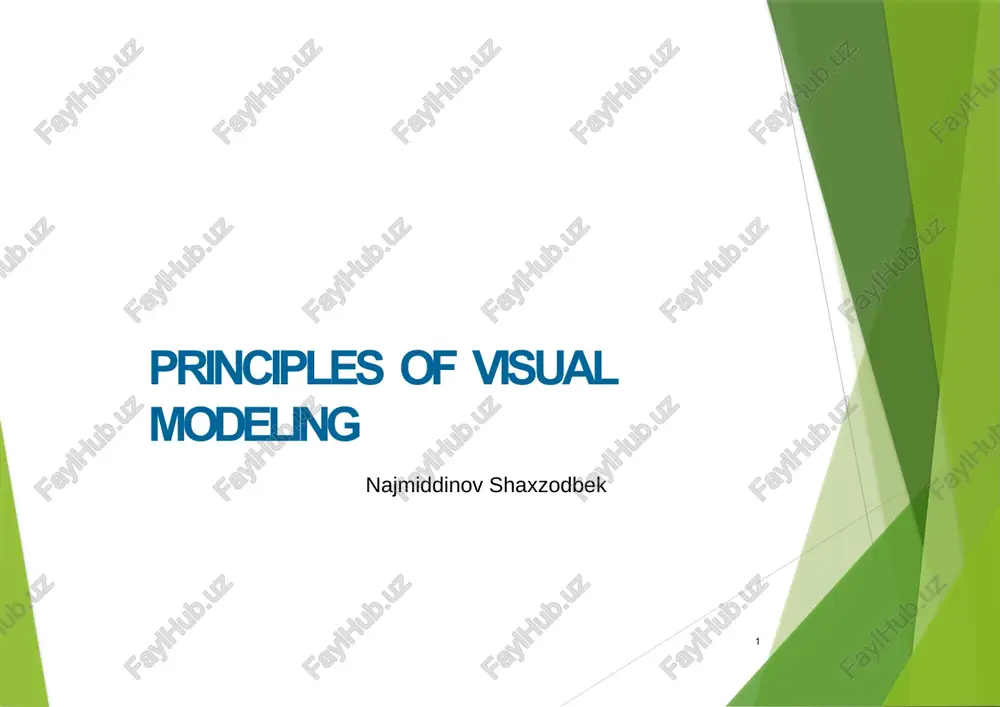

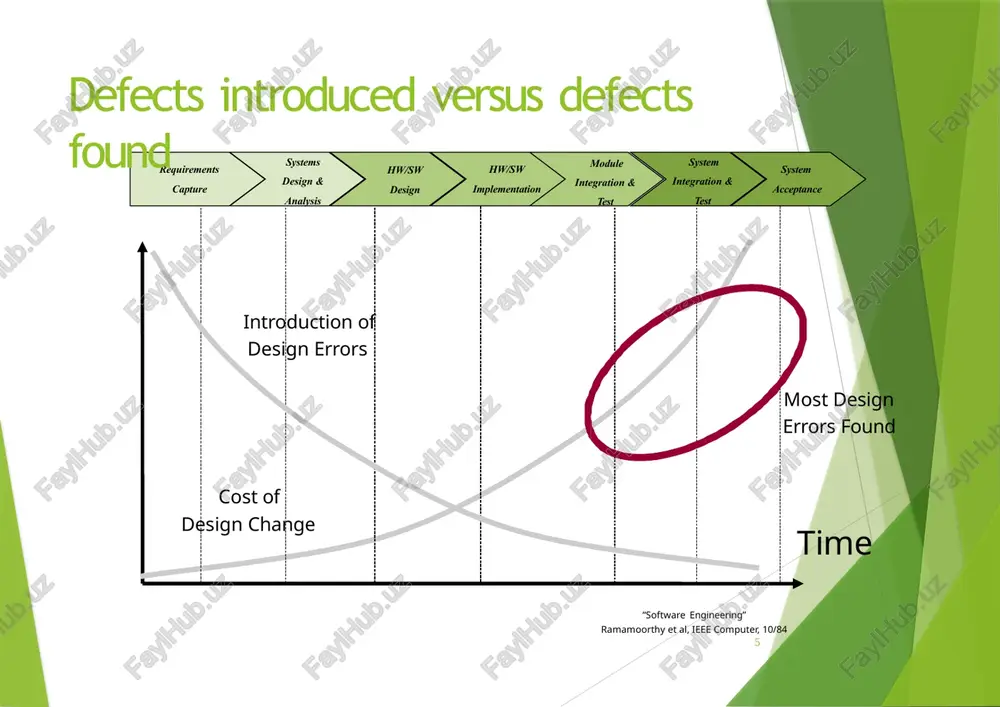

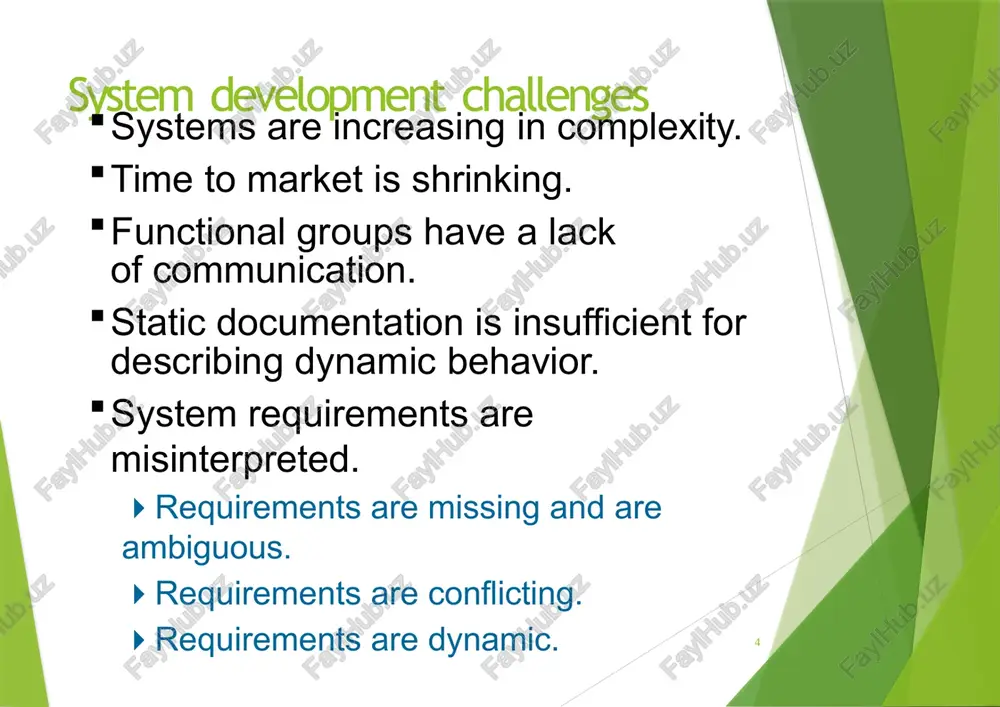

microsoft powerpoint - principles of visual modeling.ppt [compatibility mode] principles of visual modeling 1 najmiddinov shaxzodbek objectives 2 summarize the challenges of system development & mbd describe the importance of visual modeling. define the four principles of visual modeling. where are we? system development challenges what is modeling? how can it help? four principles of visual modeling 3 system development challenges 4 systems are increasing in complexity. time to market is shrinking. functional groups have a lack of communication. static documentation is insufficient for describing dynamic behavior. system requirements are misinterpreted. requirements are missing and are ambiguous. requirements are conflicting. requirements are dynamic. “software engineering” ramamoorthy et al, ieee computer, 10/84 time cost of design change system integration & test system acceptance hw/sw design hw/sw implementation module integration & test systems design & analysis requirements capture introduction of design errors most design errors found defects introduced versus defects found 5 …

2 / 21

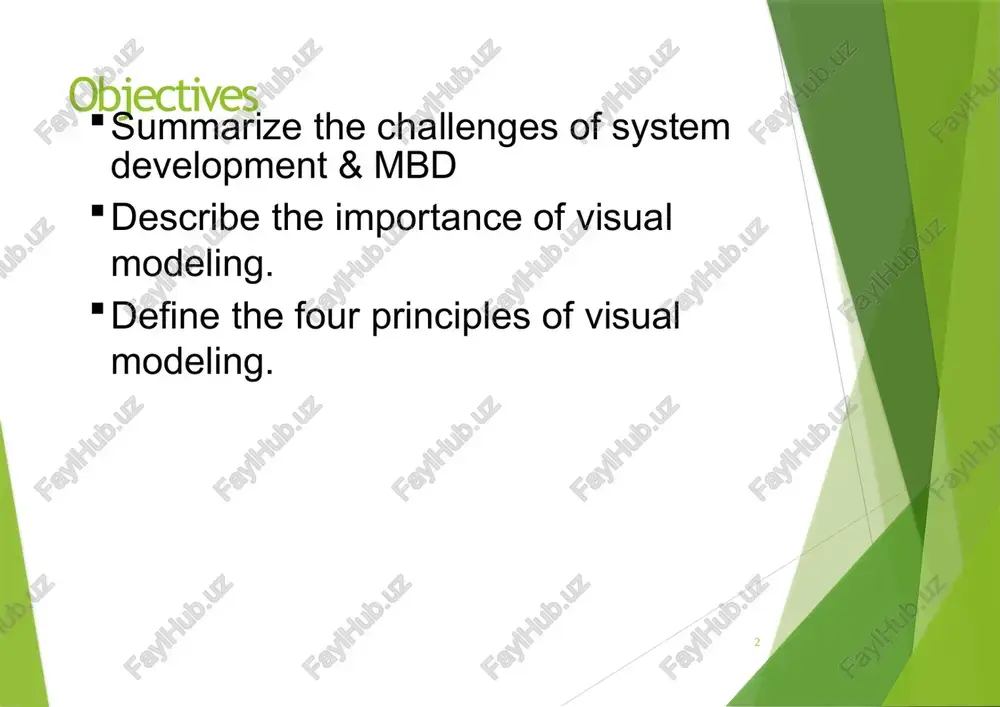

e structure or behavior of a system. gives you a template that guides you in constructing a system. documents the decisions you have made. you build models of complex systems because you cannot comprehend such a system in its entirety. you build models to better understand the system you are developing. the importance of modeling 11 paper airplane fighter jet less important more important software teams often do not model 12 many software teams build applications approaching the problem like they were building paper airplanes start coding from project requirements work longer hours and create more code lacks any planned architecture doomed to failure modeling is a common thread to successful projects where are we? system development challenges what is modeling? how can it help? four principles of visual modeling 13 four principles of modeling 14 the model you create influences how the problem is attacked. every model may be …

3 / 21
