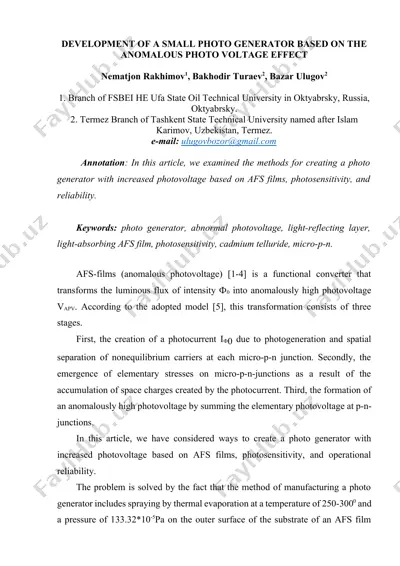

development of a small photo generator based on the anomalous photo voltage effect nematjon rakhimov1, bakhodir turaev2, bazar ulugov2 1. branch of fsbei he ufa state oil technical university in oktyabrsky, russia, oktyabrsky. 2. termez branch of tashkent state technical university named after islam karimov, uzbekistan, termez. e-mail: ulugovbozor@gmail.com annotation: in this article, we examined the methods for creating a photo generator with increased photovoltage based on afs films, photosensitivity, and reliability. keywords: photo generator, abnormal photovoltage, light-reflecting layer, light-absorbing afs film, photosensitivity, cadmium telluride, micro-p-n. afs-films (anomalous photovoltage) [1-4] is a functional converter that transforms the luminous flux of intensity ф0 into anomalously high photovoltage vapv. according to the adopted model [5], this transformation consists of three stages. first, the creation of a photocurrent iф0 due to photogeneration and spatial separation of nonequilibrium carriers at each micro-p-n junction. secondly, the emergence of elementary stresses on micro-p-n-junctions as a result …

2 / 4

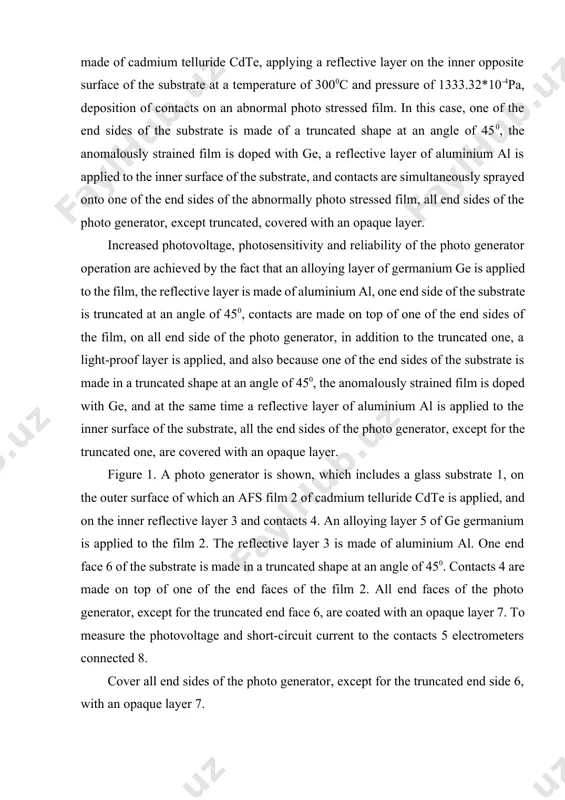

is made of a truncated shape at an angle of 450, the anomalously strained film is doped with ge, a reflective layer of aluminium al is applied to the inner surface of the substrate, and contacts are simultaneously sprayed onto one of the end sides of the abnormally photo stressed film, all end sides of the photo generator, except truncated, covered with an opaque layer. increased photovoltage, photosensitivity and reliability of the photo generator operation are achieved by the fact that an alloying layer of germanium ge is applied to the film, the reflective layer is made of aluminium al, one end side of the substrate is truncated at an angle of 450, contacts are made on top of one of the end sides of the film, on all end side of the photo generator, in addition to the truncated one, a light-proof layer is applied, and also because one …

3 / 4

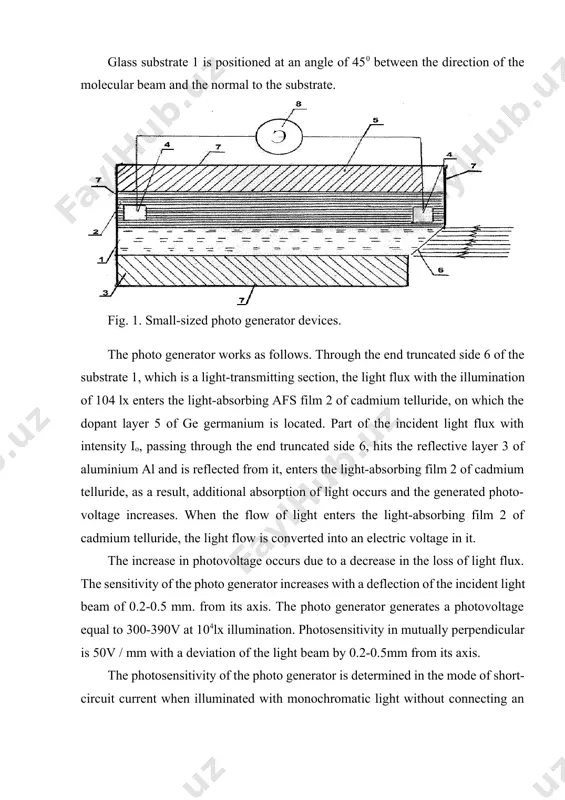

ed at an angle of 450 between the direction of the molecular beam and the normal to the substrate. fig. 1. small-sized photo generator devices. the photo generator works as follows. through the end truncated side 6 of the substrate 1, which is a light-transmitting section, the light flux with the illumination of 104 lx enters the light-absorbing afs film 2 of cadmium telluride, on which the dopant layer 5 of ge germanium is located. part of the incident light flux with intensity io, passing through the end truncated side 6, hits the reflective layer 3 of aluminium al and is reflected from it, enters the light-absorbing film 2 of cadmium telluride, as a result, additional absorption of light occurs and the generated photo-voltage increases. when the flow of light enters the light-absorbing film 2 of cadmium telluride, the light flow is converted into an electric voltage in it. the …

4 / 4

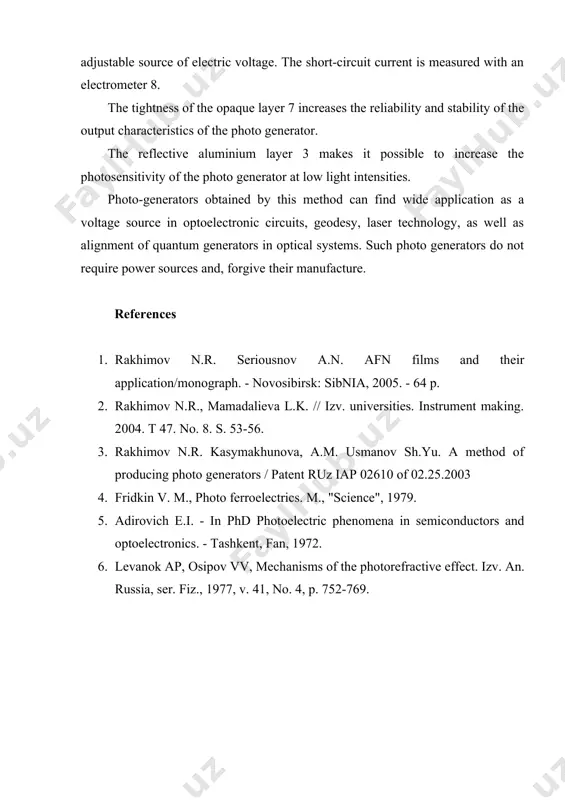

$ators in optical systems. such photo generators do not require power sources and, forgive their manufacture. references 1. rakhimov n.r. seriousnov a.n. afn films and their application/monograph. - novosibirsk: sibnia, 2005. - 64 p. 1. rakhimov n.r., mamadalieva l.k. // izv. universities. instrument making. 2004. t 47. no. 8. s. 53-56. 1. rakhimov n.r. kasymakhunova, a.m. usmanov sh.yu. a method of producing photo generators / patent ruz iap 02610 of 02.25.2003 1. fridkin v. m., photo ferroelectrics. m., "science", 1979. 1. adirovich e.i. - in phd photoelectric phenomena in semiconductors and optoelectronics. - tashkent, fan, 1972. 1. levanok ap, osipov vv, mechanisms of the photorefractive effect. izv. an. russia, ser. fiz., 1977, v. 41, no. 4, p. 752-769. image1.png development of a small photo generator based on the anomalous photo voltage effect ne ma tjon rakhimov 1 , bakhodir turaev 2 , bazar ulugov 2 1. branch of fsbei he …$
