1 / 64

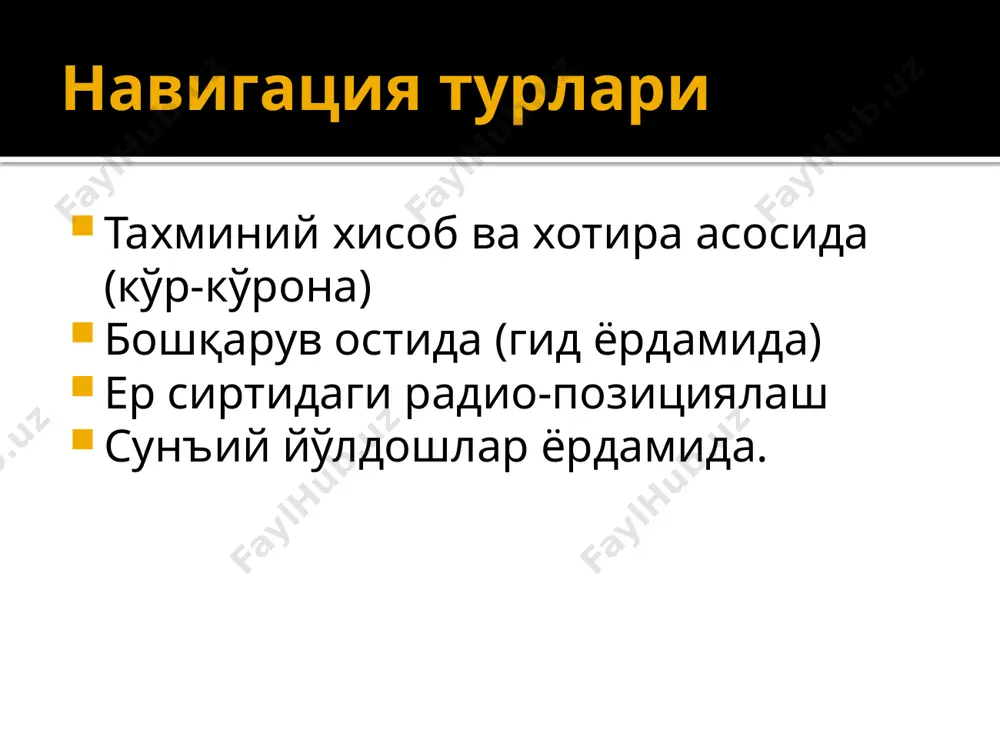

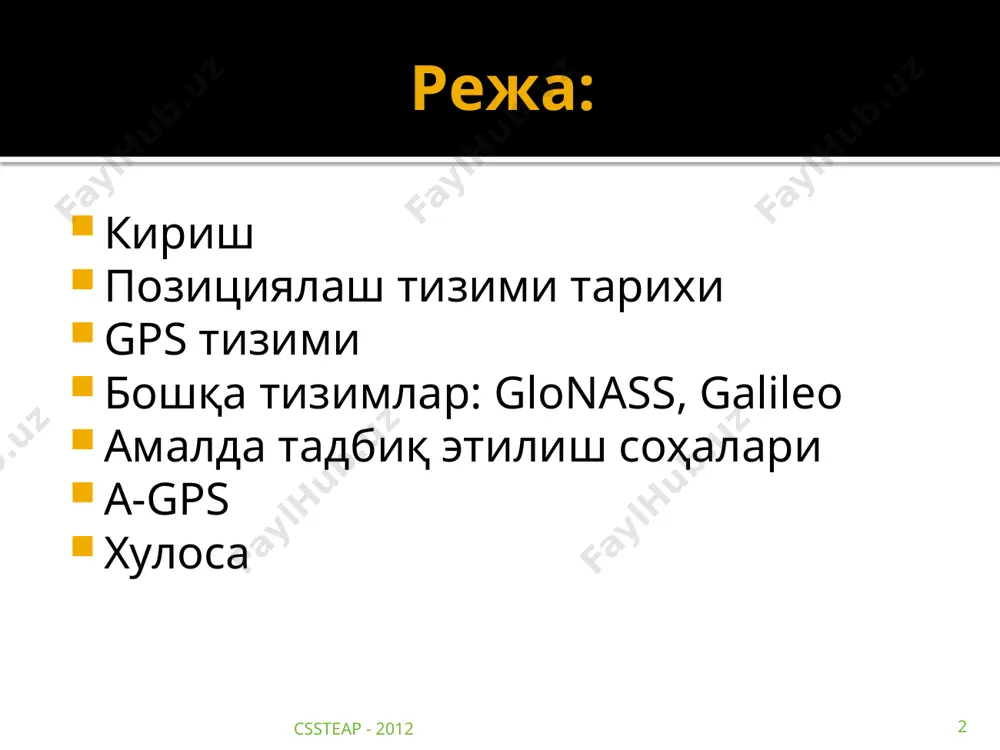

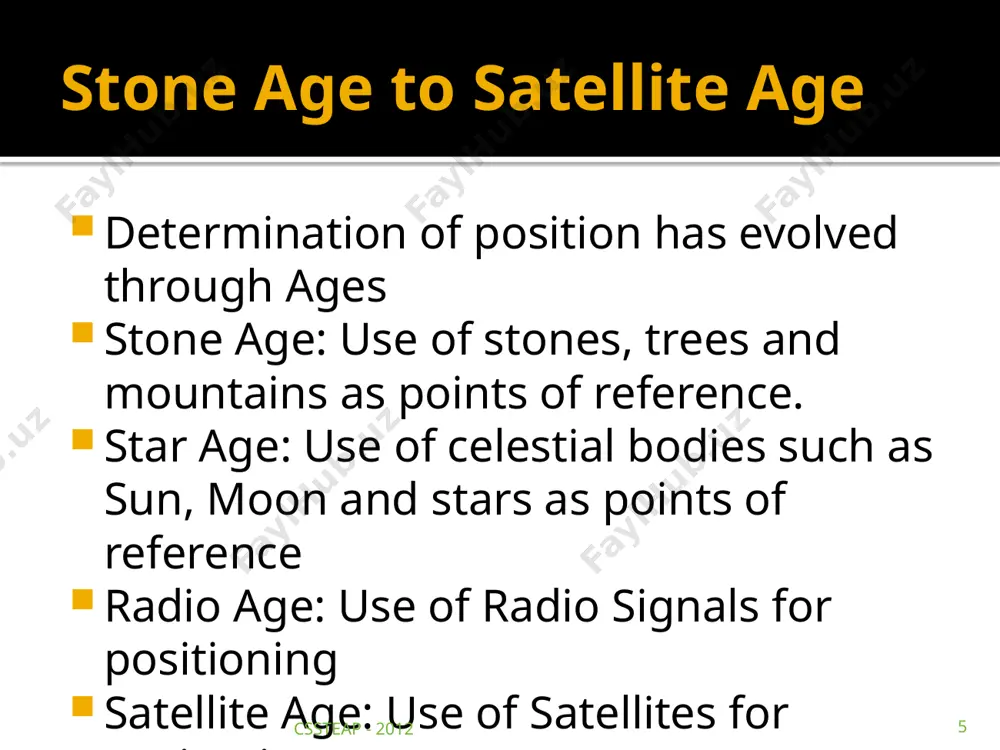

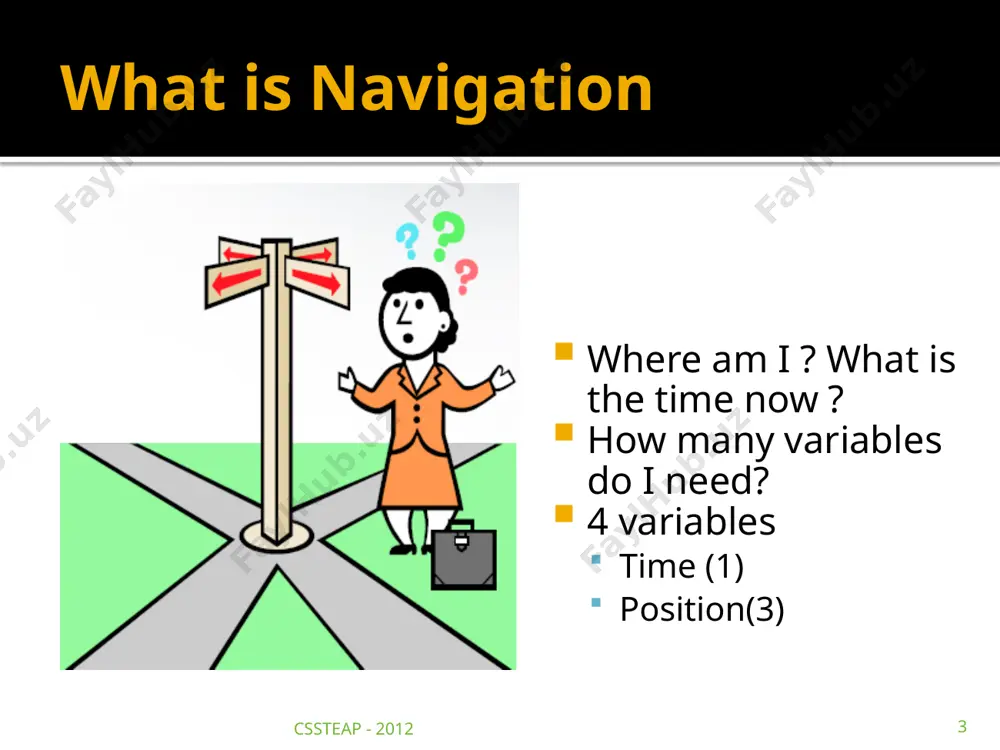

слайд 1 сунъий йўлдошли глобал навигация тизимлари режа: кириш позициялаш тизими тарихи gps тизими бошқа тизимлар: glonass, galileo амалда тадбиқ этилиш соҳалари a-gps хулоса cssteap - 2012 2 9/28/2021 2 what is navigation where am i ? what is the time now ? how many variables do i need? 4 variables time (1) position(3) cssteap - 2012 3 навигация турлари тахминий хисоб ва хотира асосида (кўр-кўрона) бошқарув остида (гид ёрдамида) ер сиртидаги радио-позициялаш сунъий йўлдошлар ёрдамида. stone age to satellite age determination of position has evolved through ages stone age: use of stones, trees and mountains as points of reference. star age: use of celestial bodies such as sun, moon and stars as points of reference radio age: use of radio signals for positioning satellite age: use of satellites for navigation cssteap - 2012 5 бир ўлчамли фазо – тўғри чизиқ икки таянч нуқтага нисбатан позицияни аниқлаш текисликда икки таянч …

2 / 64

ndustrial nation. as a result of their humiliation, the country took an active role into researching military precision. the department of defenses primary purposes in developing a global position system was to use it in precision weapon delivery cssteap - 2012 16 spotting the sputnik doppler effect studying the doppler shift of the sputnik showed a variance of the sputnik signal in comparison of its position. as sputnik approached, the signal frequency was higher than the transmitted frequency. the frequency decreased as sputnik moved farther away, although the rate of decrease slowed with increasing distance from the observers. cssteap - 2012 17 transit system cssteap - 2012 18 transit working the way it worked doppler-shifted signals enabled a determination of the orbit using data recorded at one site during a single pass of the satellite. so if a satellite’s orbit was known, a radio receiver’s position could be determined from …

3 / 64

late (to estimate a value of a function between two known values) their positions between passes. users had to compensate for their velocity weather conditions could disrupt signal the process was slow and required long observation time provided two-dimensional positioning transit was not efficient for fast moving users. corrections had to be made for their velocity. e.g. aircrafts, missiles, etc. being developed by the military cssteap - 2012 21 transit pros and cons pros proof that a space system could offer excellent positioning reliability was available to civilian users in 1967 including commercial marine navigators and personal crafts created space technologies the transit system continued to be used until 1996 after about 33 years of service. cssteap - 2012 22 transit technologies spawned the transit system resulted in a number of space technologies useful for gps. they are : satellite orbit prediction algorithms. two-frequency method for correcting ionospheric error, solar …

4 / 64

project 621 b third forerunner of gps around the same time the us navy was developing timation, the us air force worked with a design concept using a similar technology program called project 621b. by 1972, the system demonstrated the operation of new type of satellite ranging signal based on pseudorandom noise (prn) biggest improvement- 3 dimensional navigation with continuous service!!! (latitude, longitude, and altitude) cssteap - 2012 26 navstar/gps introduction 1968-joint program office (jpo) department of defense steps in creates a joint tri-service committee called the navseg (navigation satellite executive group) what navseg had to determine? how many satellites? what altitude? what would be the signal codes what would be the modulation techniques cost cssteap - 2012 27 navstar/gps birth қабул қилгич (приёмниклар): аввал... ( хозирда.../ global positioning satellite(gps) cssteap - 2012 28 gps defined 24 satellites in operation and 32 satellites in orbit. medium earth orbit (meo), altitude …

5 / 64

s essc 541-542 lecture 4.14.05 36 control segment master control station monitor station ground antenna colorado springs hawaii ascension islands diego garcia kwajalein monitor and control 36 the second segment we'll talk about is the operational control segment. this segment consists of 5 monitor stations on islands near the equator (hawaii, ascension, diego garcia, and kwajelin) and one master control station located at falcon afb, co. all of these stations track the gps signals, and send them back to the master control station at falcon. a backup mcs exists at loral federal system in gaithersburg, md. the four stations track and monitor the where-abouts of each gps satellite each day. then land-based and space-based communications are used to connect the monitoring stations with mcs. military applications 37 intelligence and target location: military aircraft relies totally on gps aided ins (inertial navigation system) using no ground reference at all. mines detected …
